CNC Gear Shaping

Gear shaping operations to ensure high quality gears.

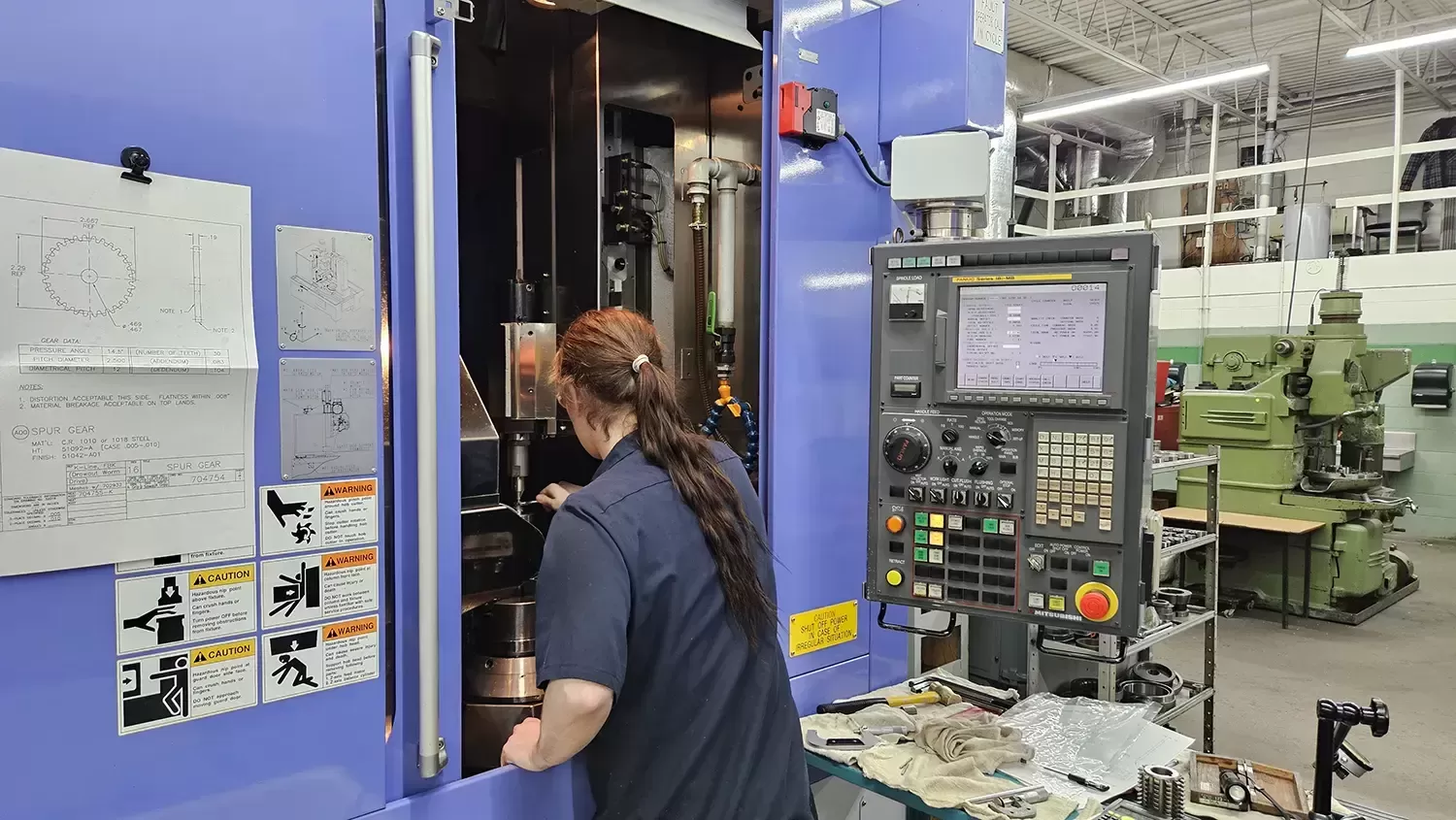

CNC Gear Shaping is one of True Gear & Splines specialties. 2 Mitsubishi ST40 shapers and a Pfauter PSA500 represent the most sophisticated technology available. They provide unique capabilities such as internal and external helical gears and double helical gears in addition to standard spur gears and involute splines. With CNC controlled helix angle capabilities and quick return stroke, cycle times for large production runs are easily accommodated. Quick setup times mean small lot sizes are equally as productive.

Most gears need to be shaped based on individual, unique customer requirements. True Gear & Spline is committed to a policy of customer satisfaction above all else. Take the time to work with us and see as your needs are met perfectly. Remember that our experienced and skilled team are always on hand to work with you to meet your needs. All you need to do is let us know what your requirements are, and we will do the rest for you!

Gear shaping is one of the fundamental parts of gear manufacturing. True Gear has the capability to support both internal & external splines, spur gears, internal gears, helical & double helical types. Our Mitsubishi ST-40 Shapers have the ability to produce quick cycle times for large production runs with the benefit of having quick return stroke and CNC controlled helix angle capabilities.

Consistency and accuracy in gear shaping and cutting are our fundamental principles whether working with one off parts or larger production orders. All our gears go through a rigorous inspection process to make sure customer requirements are satisfied.

Gleason Pfauter PSA 500

2 Mitsubishi ST40

Mitsubishi SC40

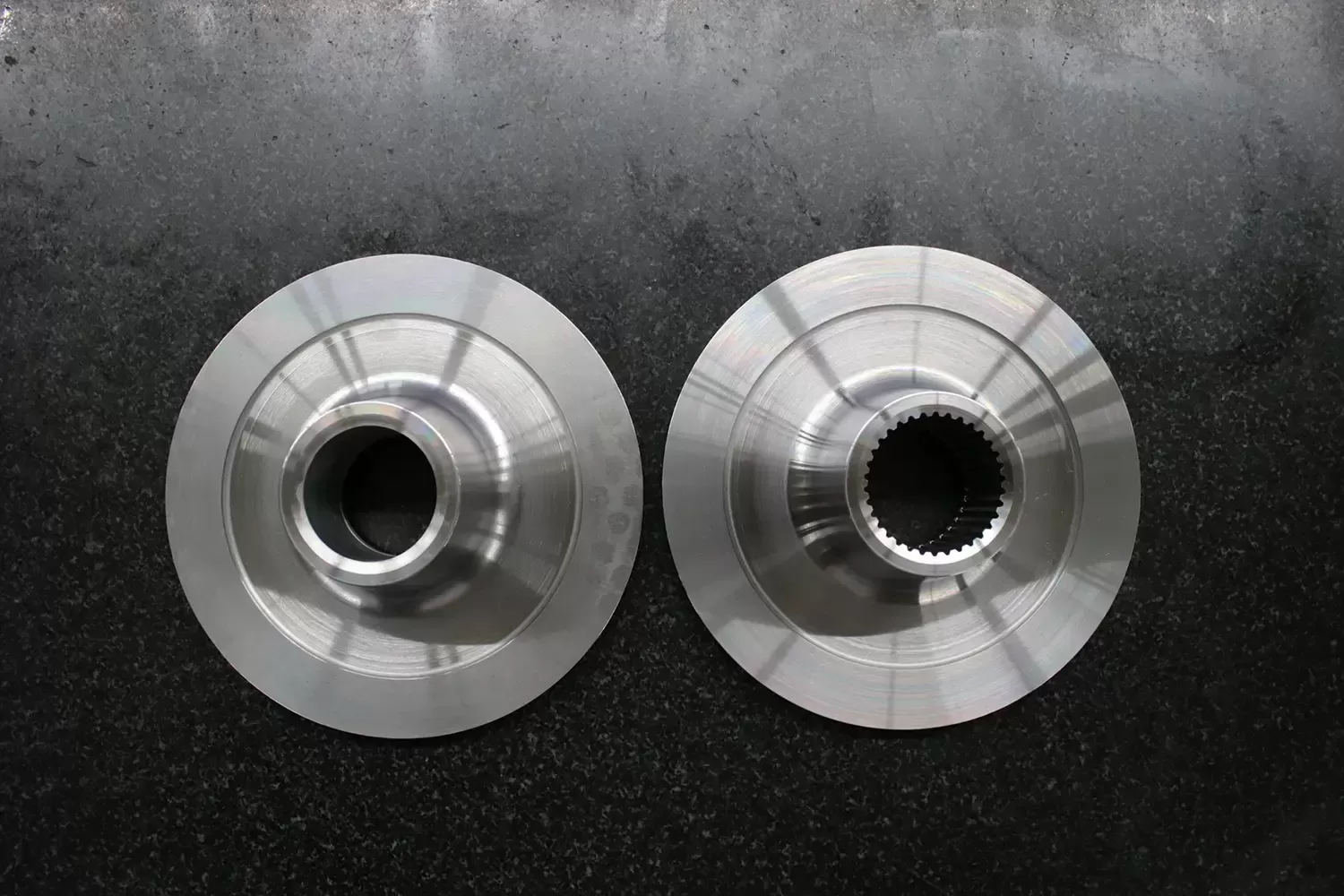

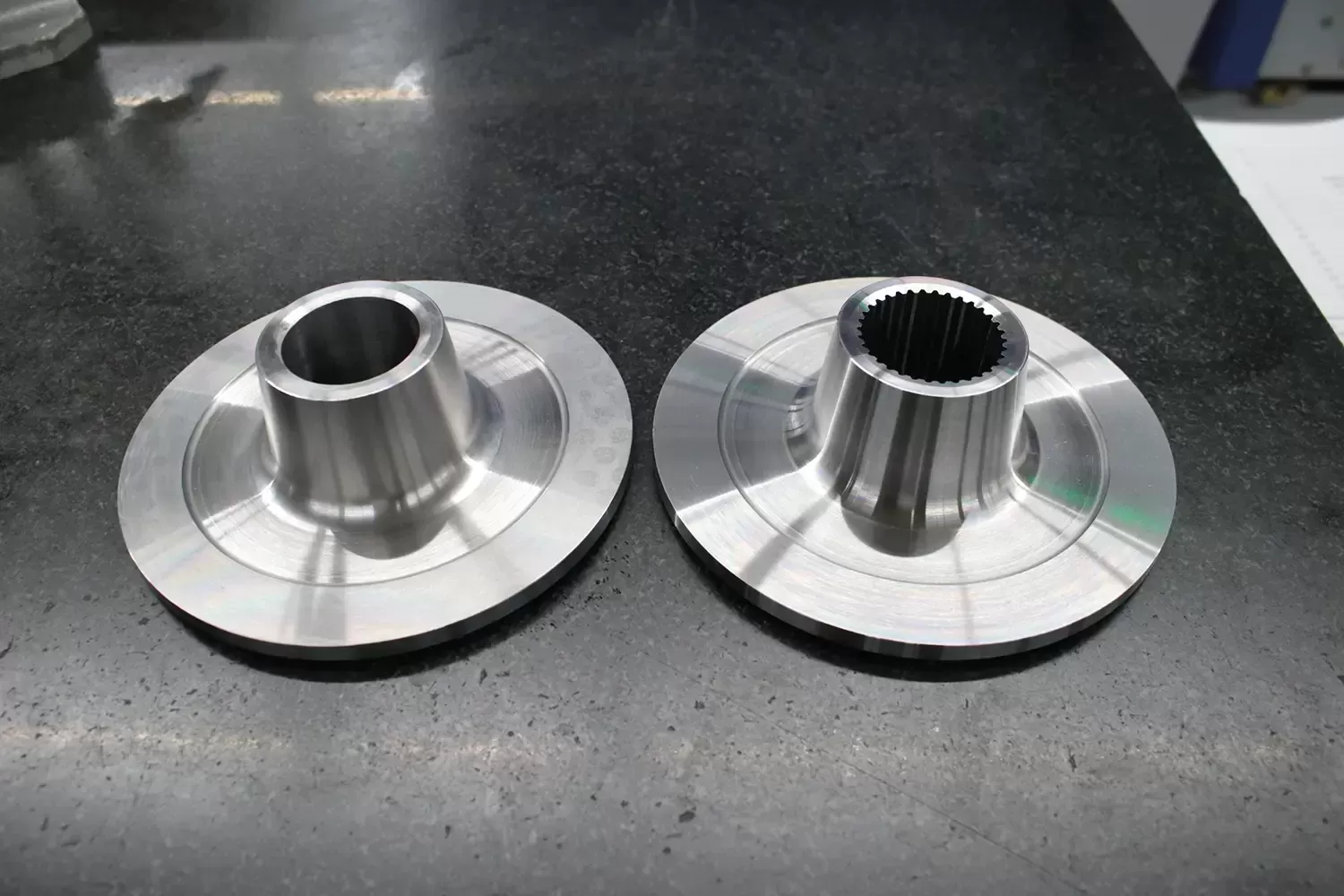

Internal shaping splines, spurs & helicals

External shaping spurs,helicals & Sykes double helical

One off & high production runs

Prototyping for production

High quality gears & splines

19 Gear Shapers
