A Comprehensive Guide To Choosing A Perfect Spline Shaft

October 01, 2024

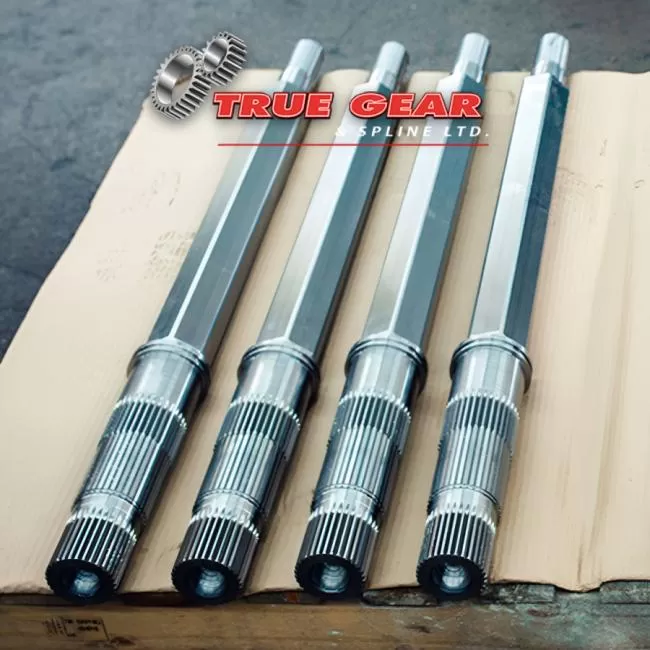

Precise spline shafts from True Gear & Spline Ltd. in Cambridge, Ontario

The right components are crucial for facilitating torque transmission. Industrial machinery or equipment has countless moving parts. While some get the credit they deserve, some don't. The spline shaft falls under the latter. These cylindrical shafts boast an unmatched ability to transmit torque between mechanical components However, they do not get the appreciation they deserve. The workings of these shafts are very similar to gears. At True Gear & Spline Ltd., we custom manufacture and supply shafts to clients in Ontario. Our facility in Cambridge is where all the magic happens. If you are in the market for dependable splines, having the right information can help you make the right decision. Continue reading for factors to consider while sourcing spline shafts.



Top Factors To Consider While Choosing A Spline Shaft



1. Application-Specific Selection


Selecting the right spline can be simple when armed with the right information. One of the first things you should establish is the spline type best suited for your application. There are numerous splines to choose from, each with its benefits and features.  involute splines, straight-sided splines, and serrated splines are just a few examples. Involute is among the most popular splines. It offers smooth operation and is apt for high-load applications. Understanding the spline type you want to invest in is crucial to ensure reliability in mechanical systems.



2. Choose The Right Material

A spline shaft is only as good as its material. Spurious and low-quality materials cannot offer the reliability that industrial machinery needs. Spline manufacturers prefer different types of steel, as they are reliable and durable. Different applications require varying strength, flexibility, and resistance to wear. Chemical exposure, extreme temperatures, and operation frequency also determine material selection. Describe your requirements to an expert spline manufacturer and they will suggest the material you should go with.



3. Accurate Tooth Profile Selection


The tooth profile is one of the most important factors determining the efficiency of spline shafts. Improper tooth profile selection can drastically affect the efficiency of your operation. The way these shafts facilitate torque transfer is simple. The ridges on the shaft mesh with each other to create a tight fit, thus facilitating torque transmission and permitting axial movement. Selecting the right tooth profile also impacts assembly ease and precision. A well-matched profile reduces backlash, enhancing overall system performance.



4. Precise Tolerance


Precision is the key to seamless mechanical operation. You cannot guarantee precision without splines that offer impeccable tolerance. The shaft has to be custom-made for your specific applications to ensure precise tolerance. Customization is crucial as it ensures tailor-made solutions for your specific torque transmission requirements. It is important to understand that the required tolerances vary depending on the applications. Tight tolerances are generally apt for high-speed operations where misalignment can be fatal. Looser tolerances are ideal for operations where there's little scope for misalignments owing to thermal expansion or other reasons.



5. Proper Diameter and Specifications


Length and diameter are crucial as far as making the perfect spline shaft is concerned. You absolutely cannot ensure a tight fit without getting the diameter right. The margin for error is so low in gear manufacturing that even a few millimeters of misalignment can have detrimental effects. The appropriate shaft length depends on many factors. A longer shaft can provide added leverage but may also introduce bending stresses. The diameter of the shaft directly influences its load-bearing ability. As you may presume, a thicker diameter offers much more durability. However, it also takes up more space within the machinery. Not to mention a thicket diameter means more weight. Choosing a shaft with the perfect length and diameter is crucial for your operations.



6. Load-Bearing Ability


A spline shaft has to have excellent load-bearing ability. Imagine investing in a shaft that breaks into two at the first sign of stress. That is probably the worst thing for a business owner. You'd have to scramble to replace or repair the shafts so the operations can get going again. As you might have already figured, the load-bearing ability is critical when selecting a spline shaft. Load capacity is a critical factor when selecting a spline shaft. Different applications require different load capacities. If you are looking for a durable shaft that stands the test of time, it is imperative to go for one that has the maximum load capacity.



7. Working Environment


The working condition affects the durability of splines more than anything else. You should consider the environment to which spline shafts will be exposed before sourcing them. High-temperature working conditions call for splines made of materials with high thermal resistance. You see, some splines might get deformed when exposed to high temperatures. If the working conditions are too cold, you might want to invest in a flexible material that can prevent breakage due to brittleness. Vibrations and shocks are also factors to consider while investing in splines.



Trust True Gear & Spline Ltd. For The Best Splined Shafts


True Gear & Spline Ltd. based in Cambridge, Ontario is a one-stop destination for all your spline shaft needs. Our expert team and cutting-edge technology ensure top-notch splined shafts for all your industrial needs. We use CNC machining and the latest software to ensure precision and quality. Our engineers will work closely with you to understand your needs. Customization is at the heart of everything we do. You can also count on us for the best gear hobbing services or rigid sleeve coupling. Talk to our experts today to learn about our spline and gear manufacturing services. Call 519-653-1301 to place an order or get a free quote.
